gbaHD AIO Shell

Regular price
$30.00 USD
Sale price
$30.00 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

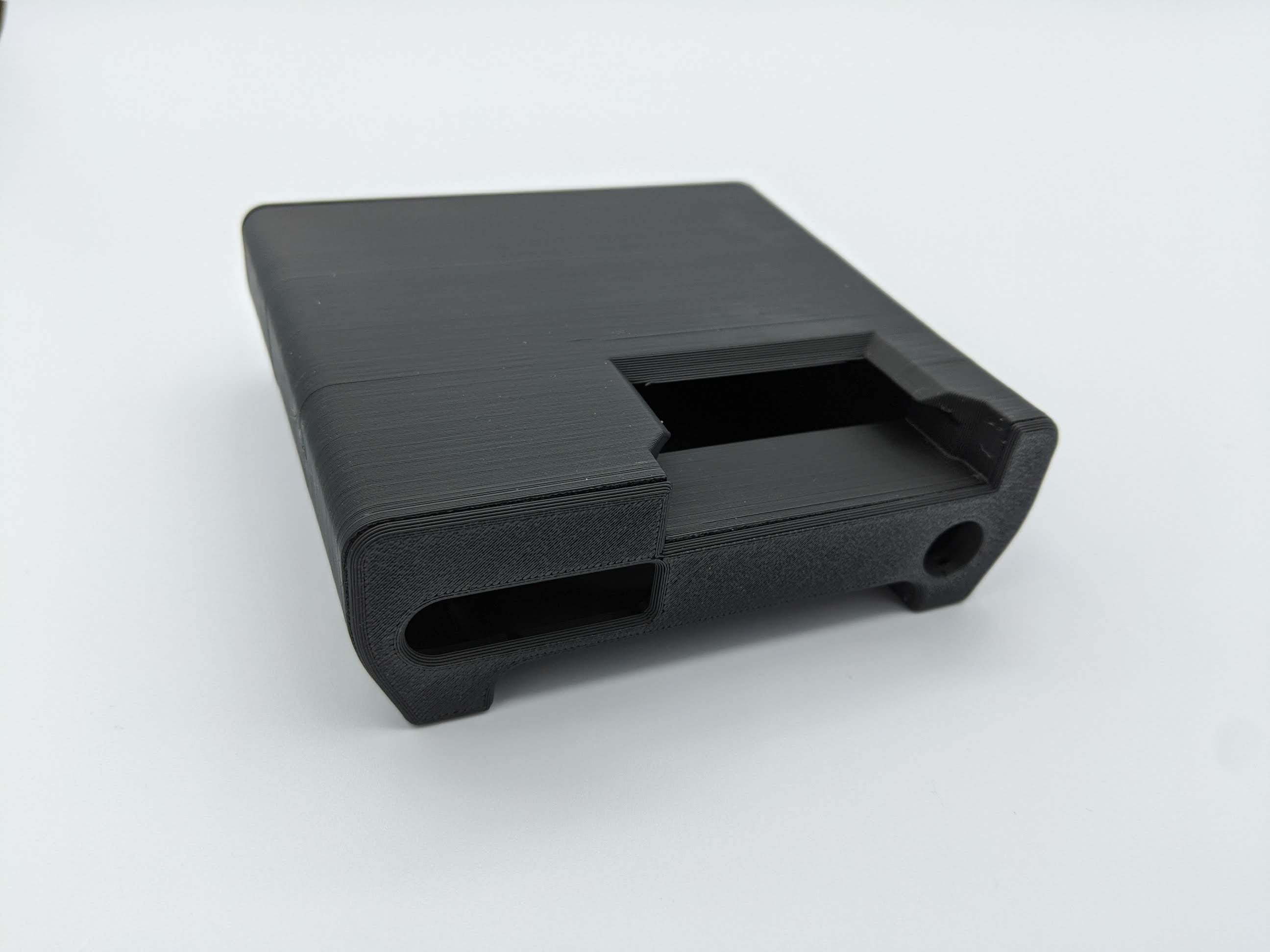

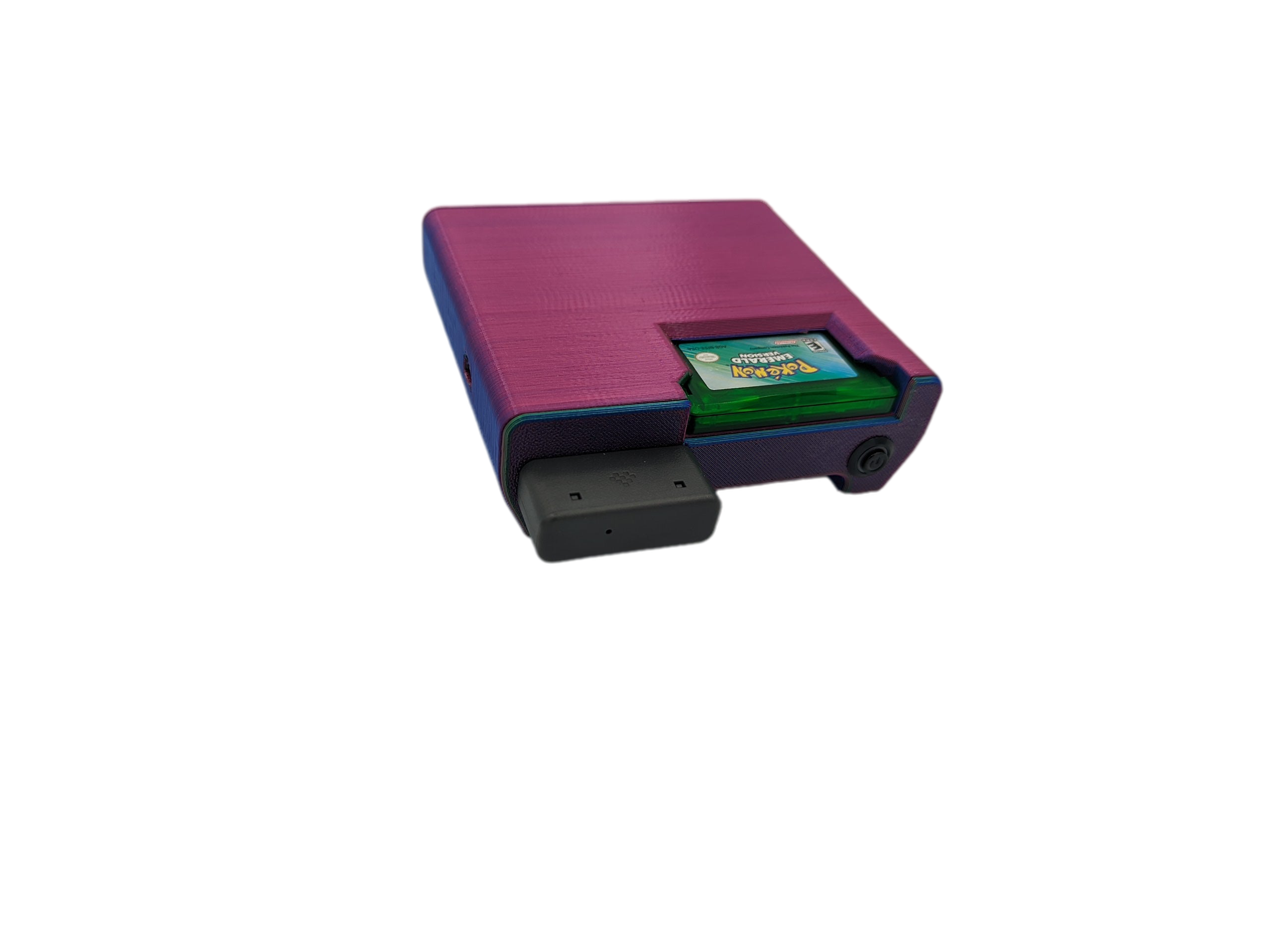

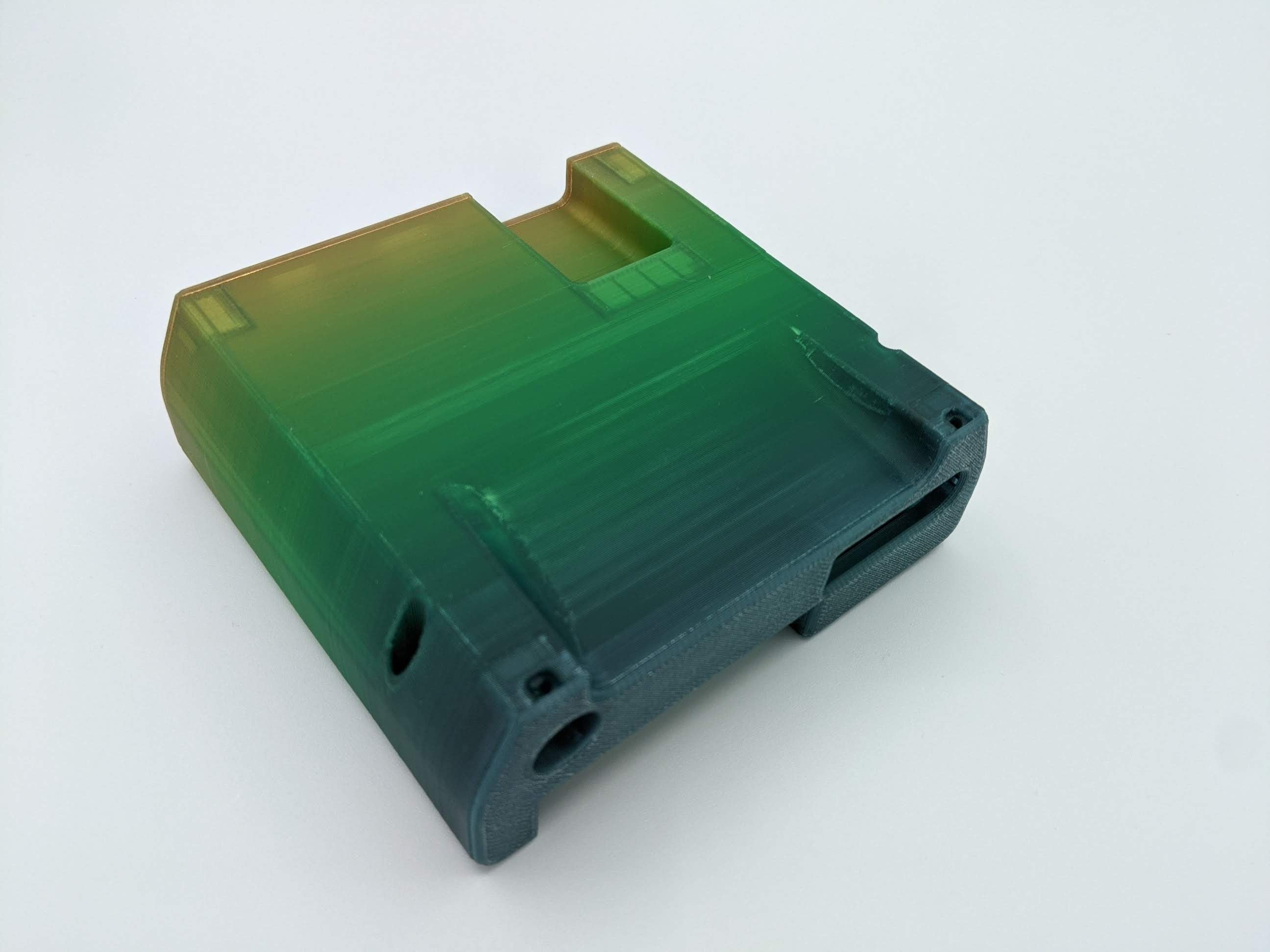

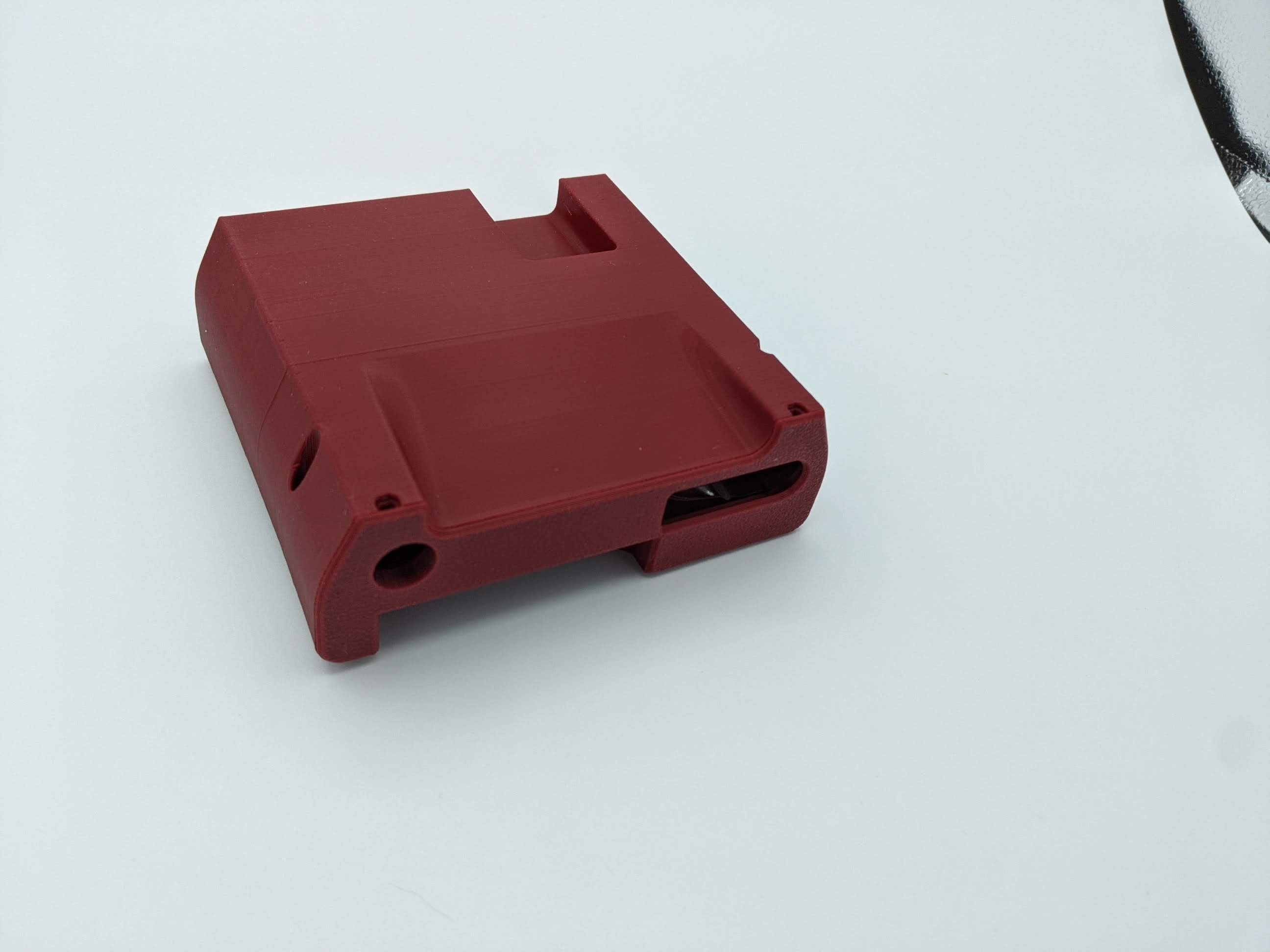

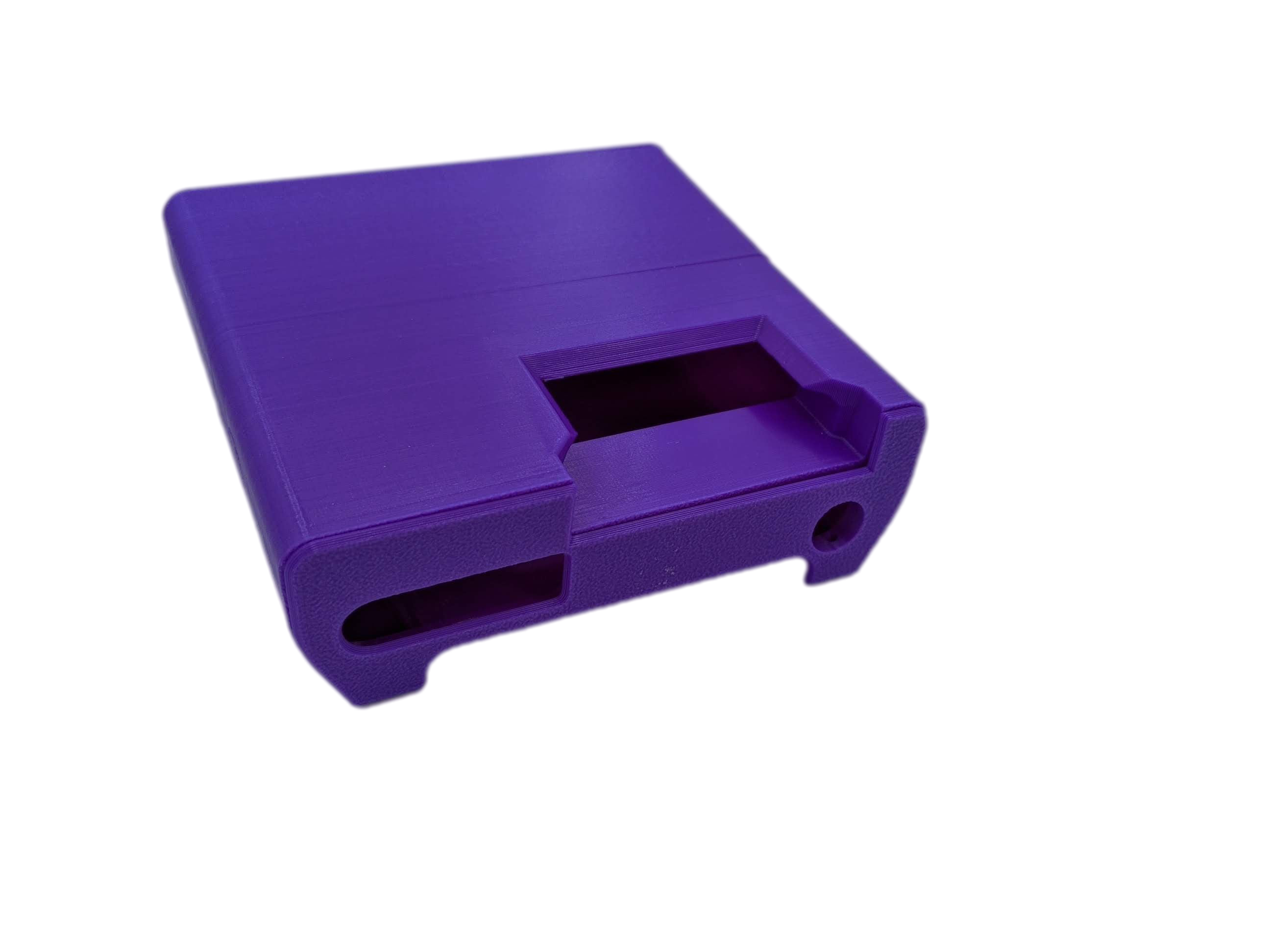

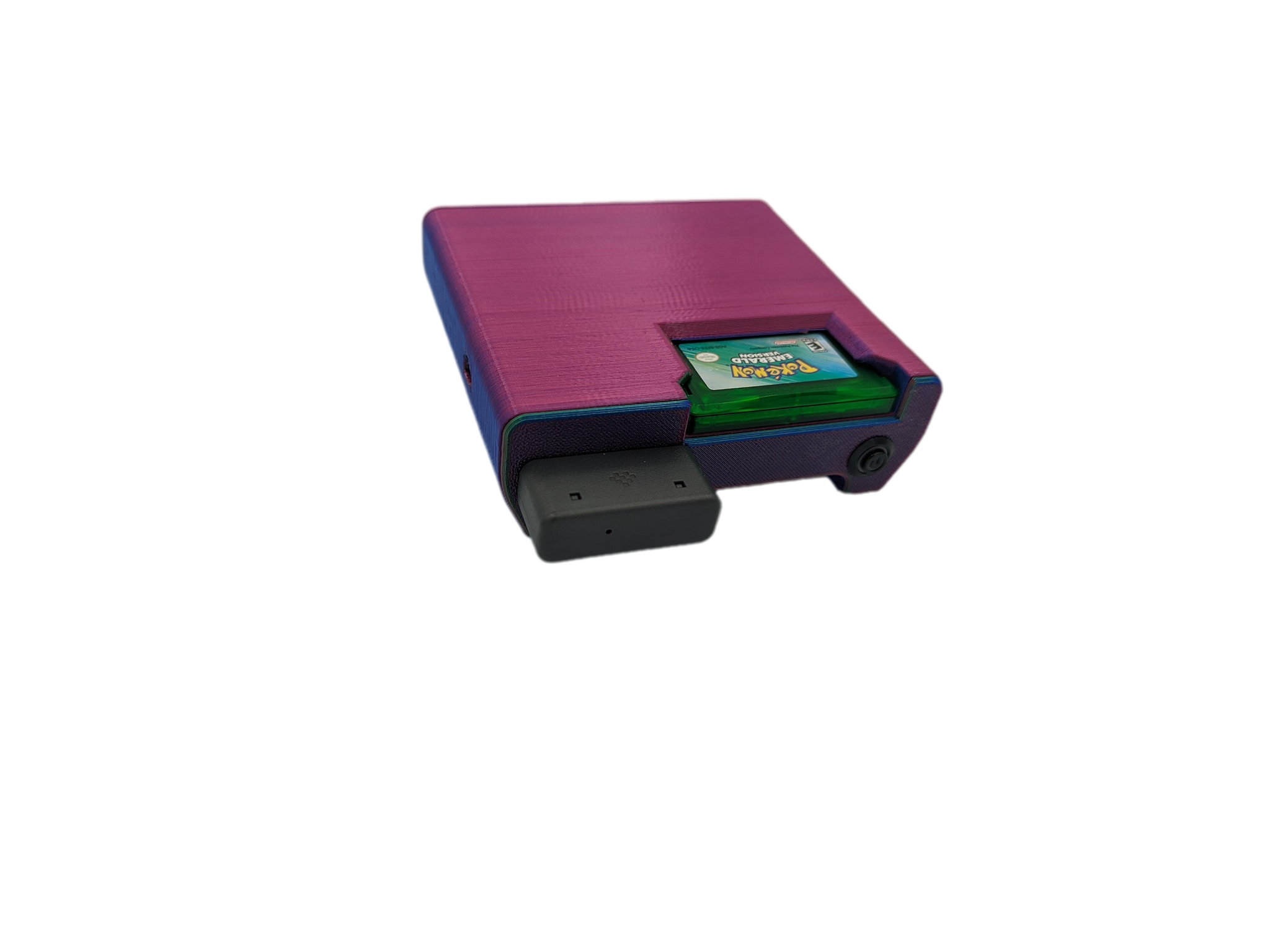

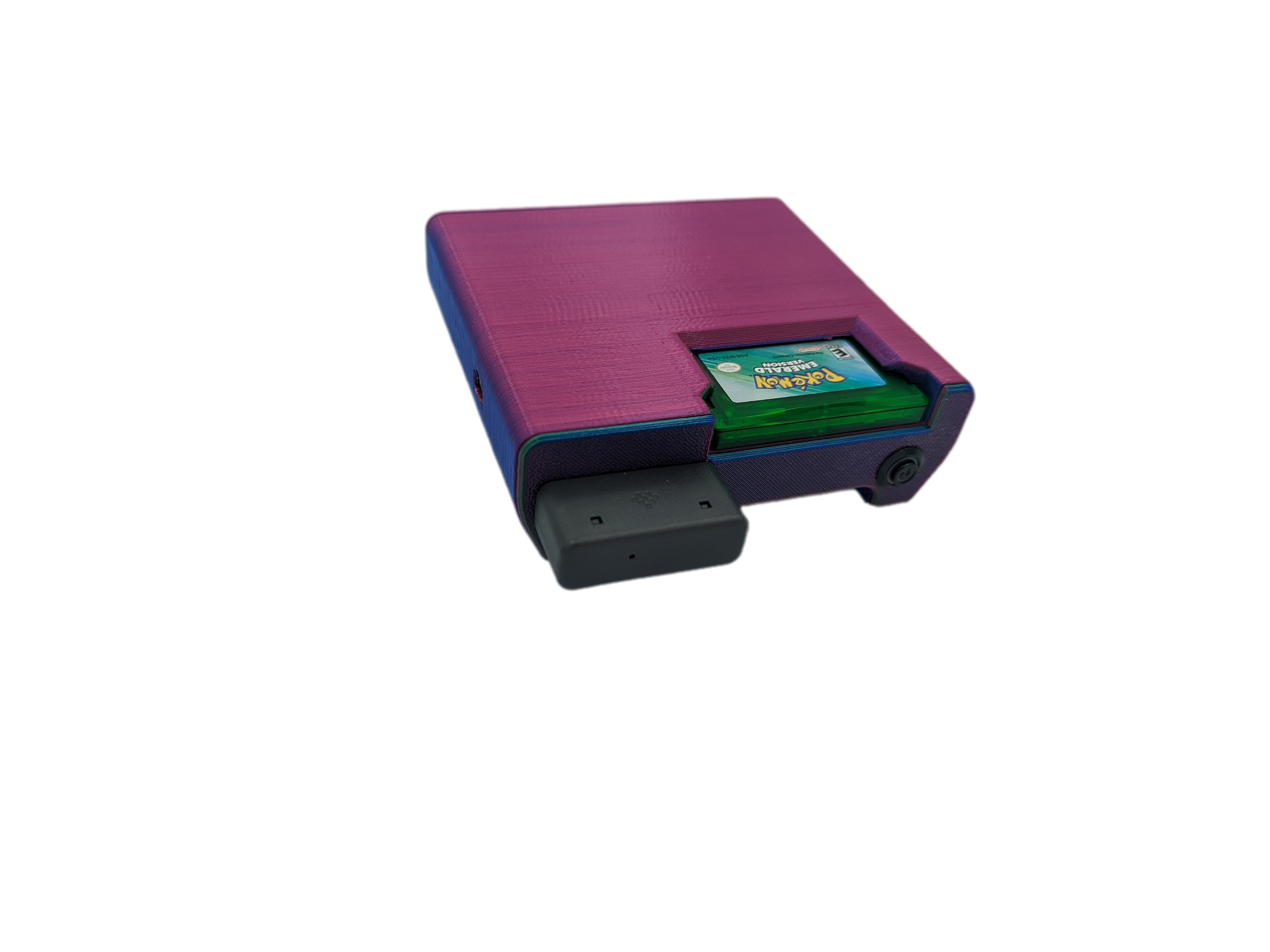

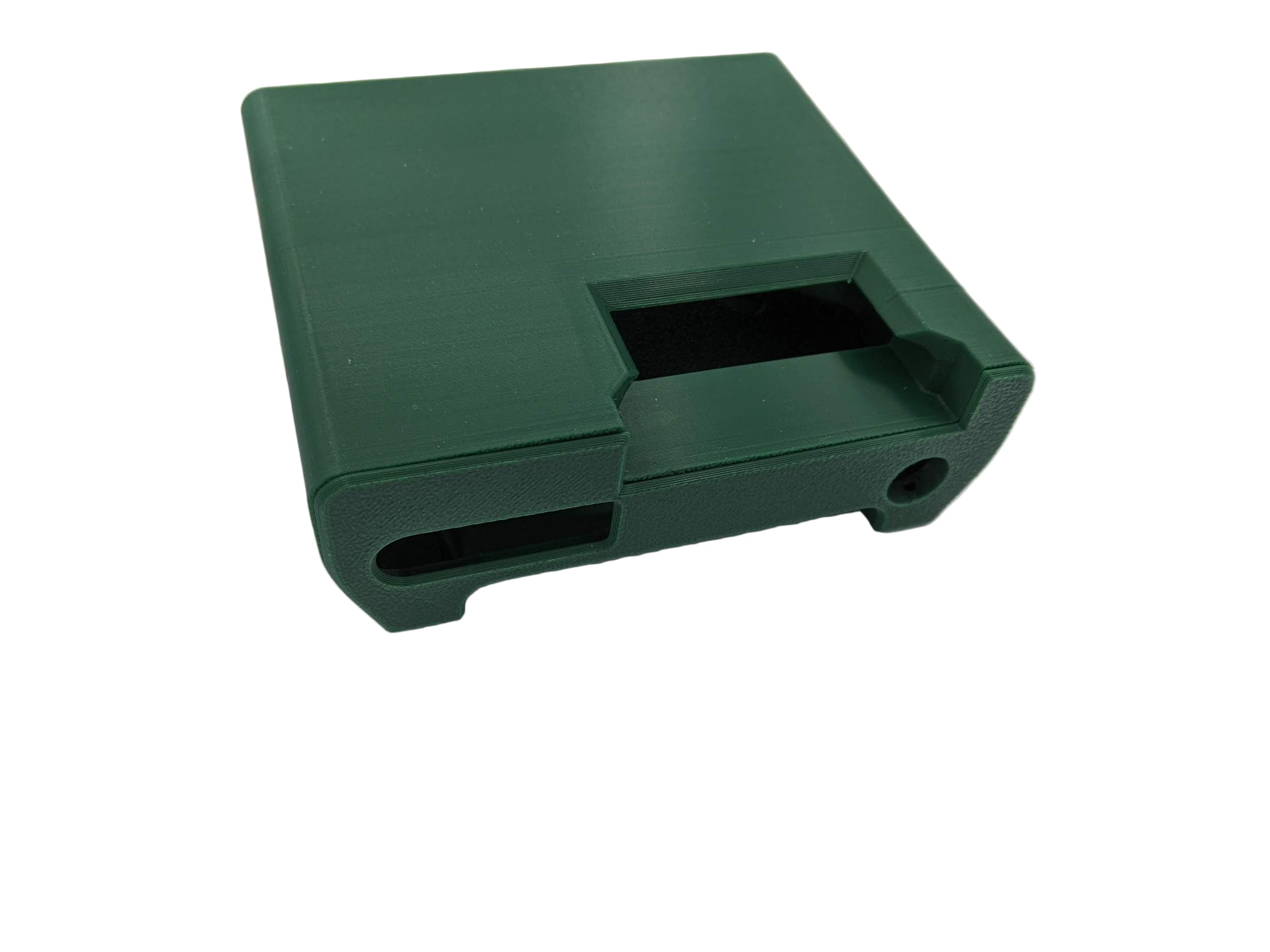

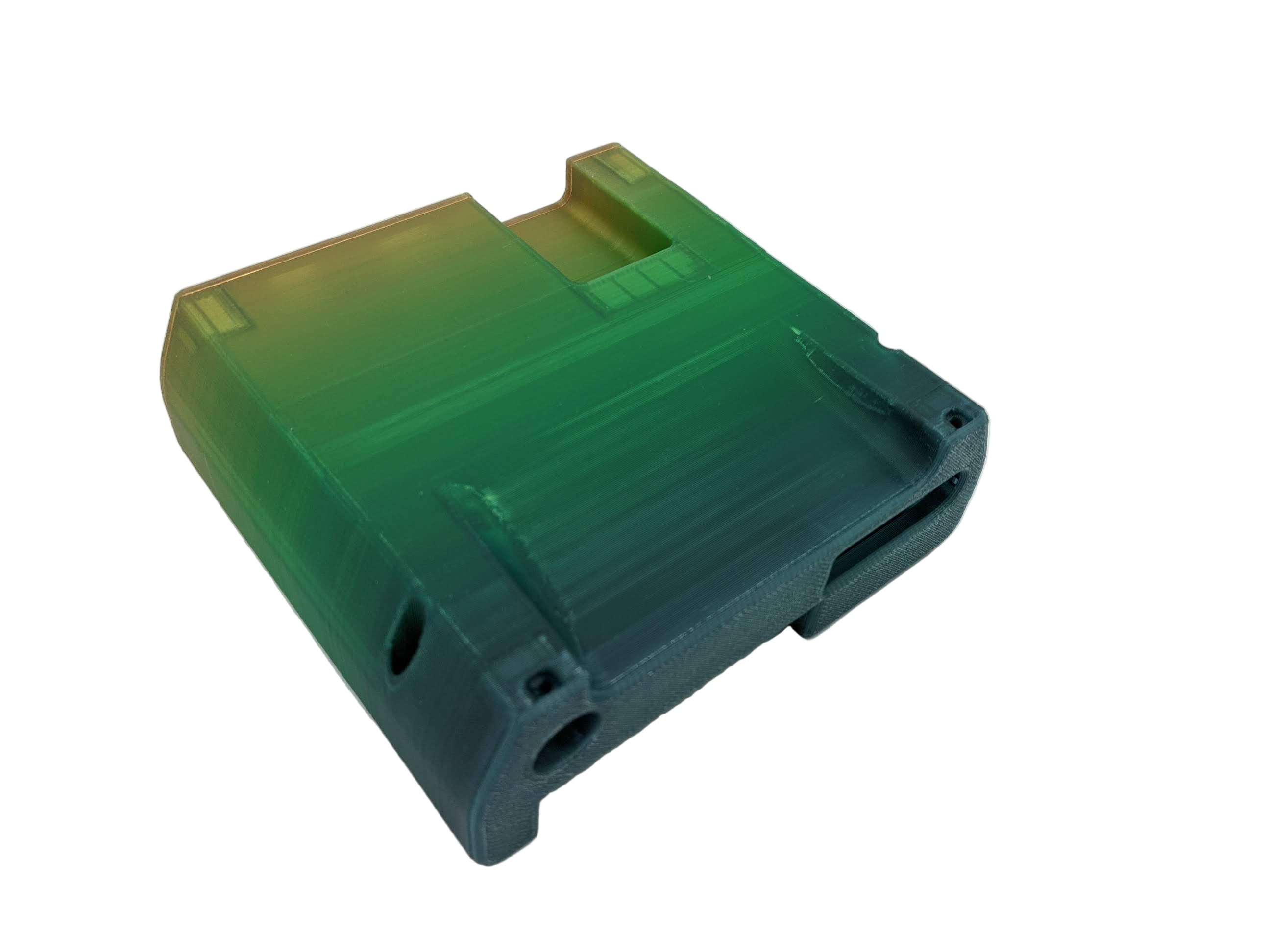

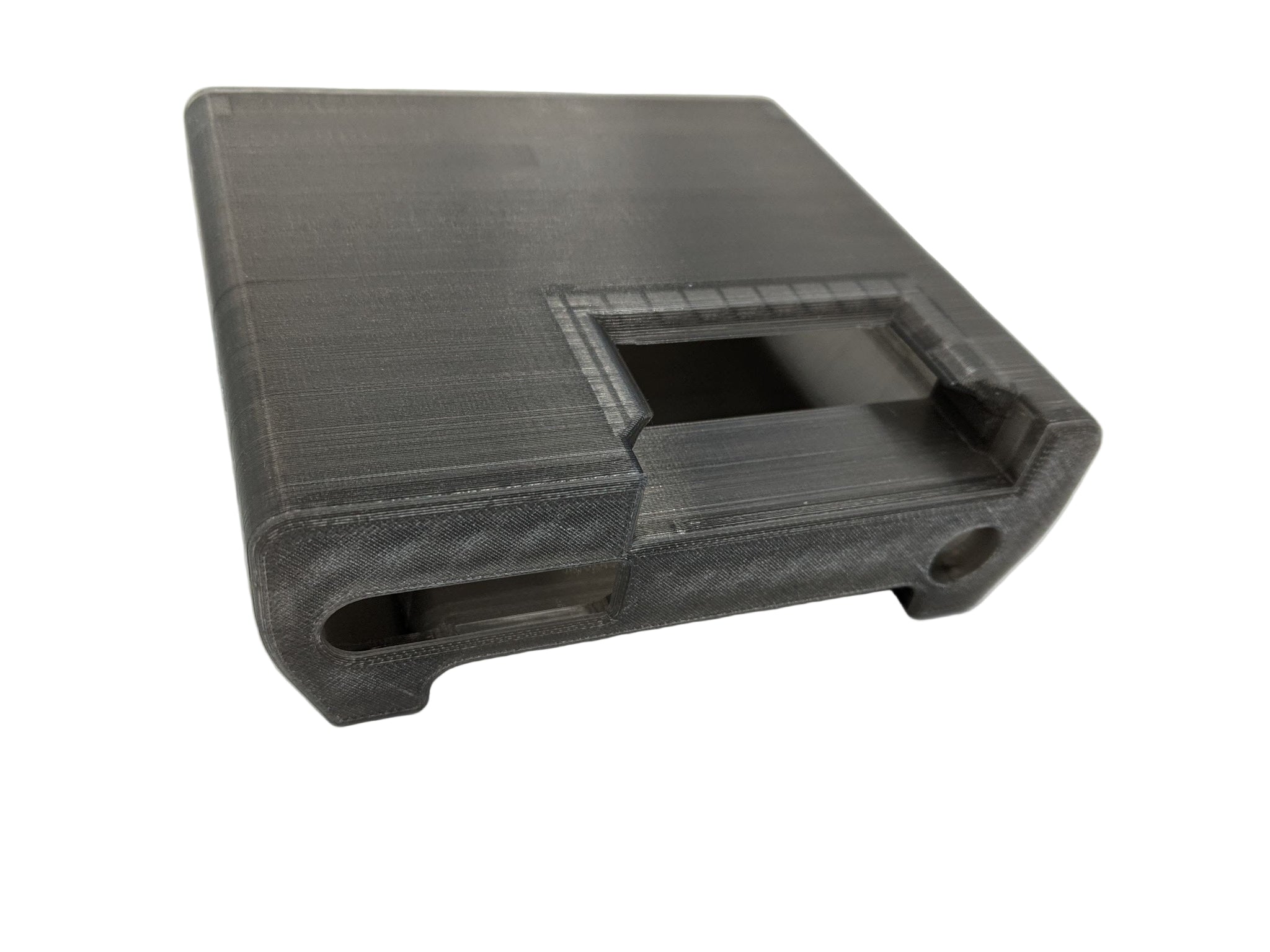

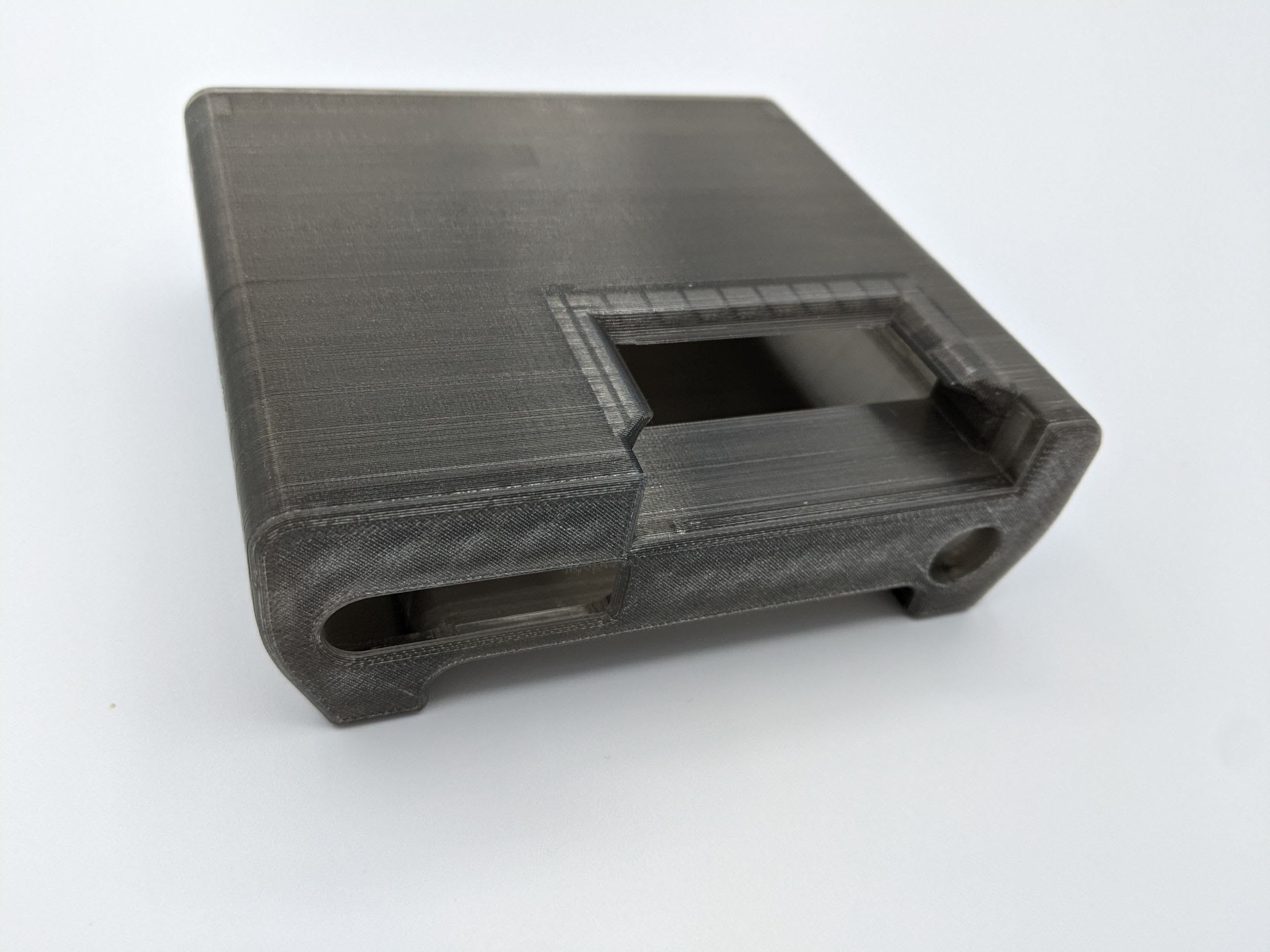

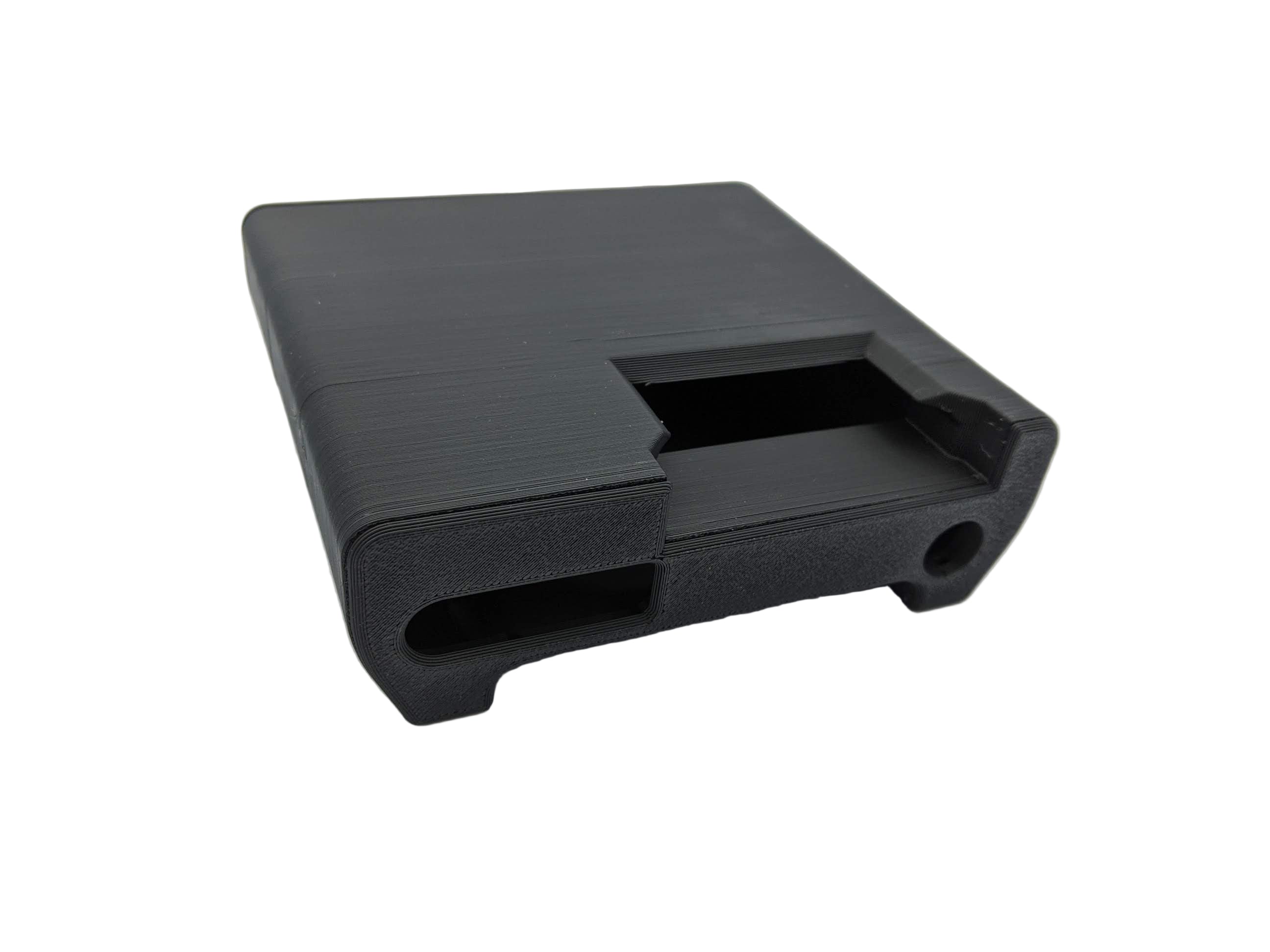

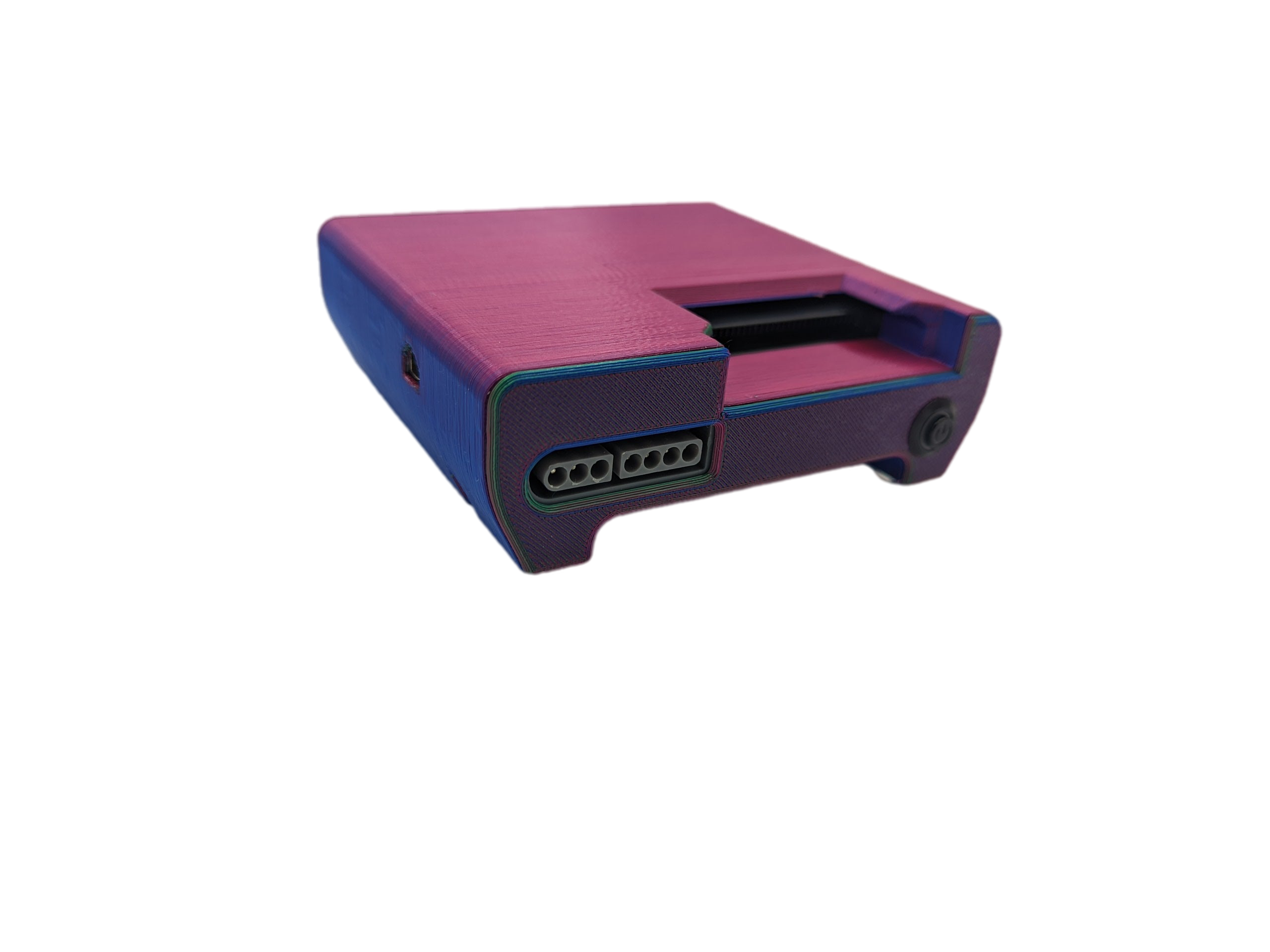

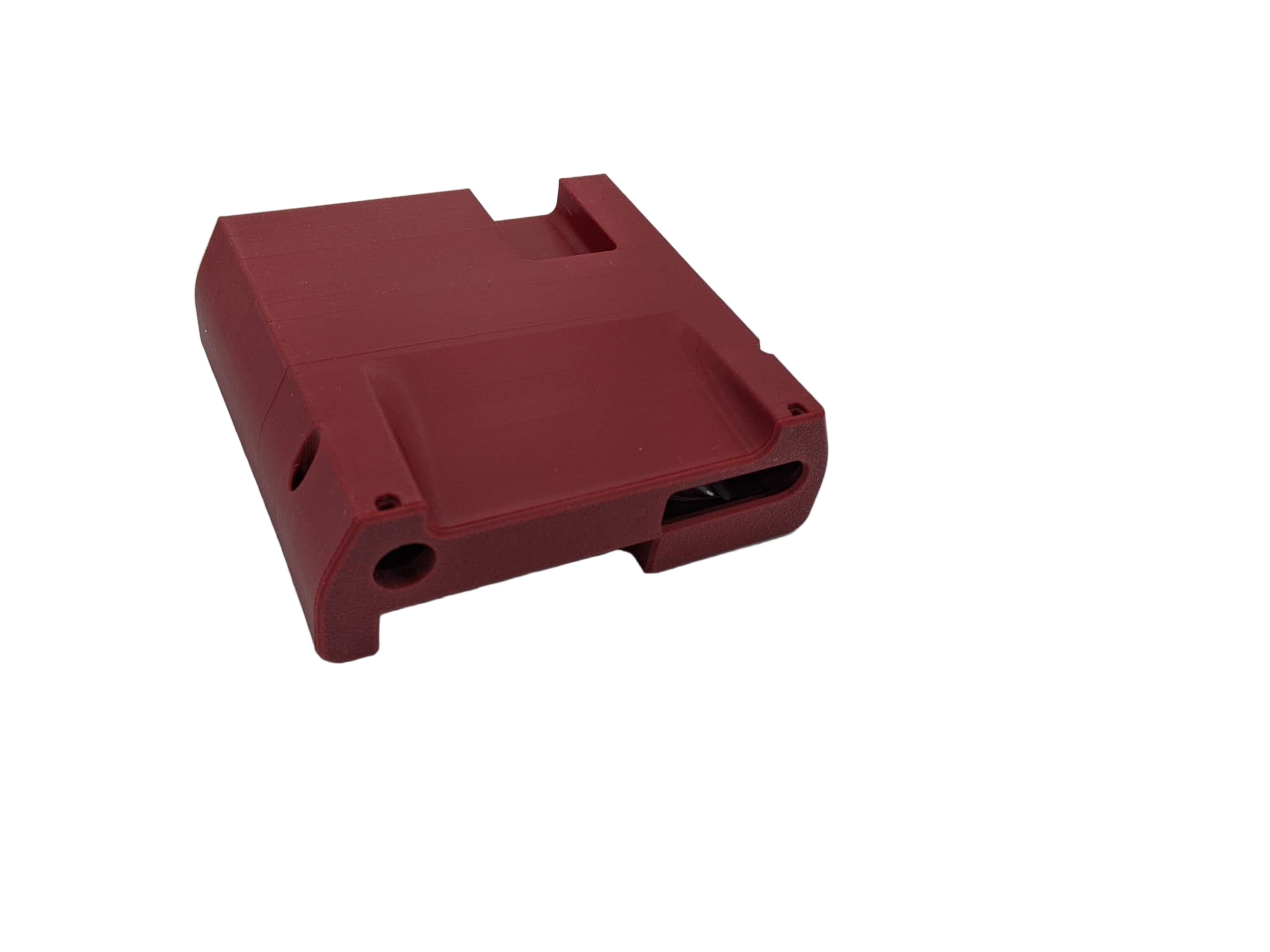

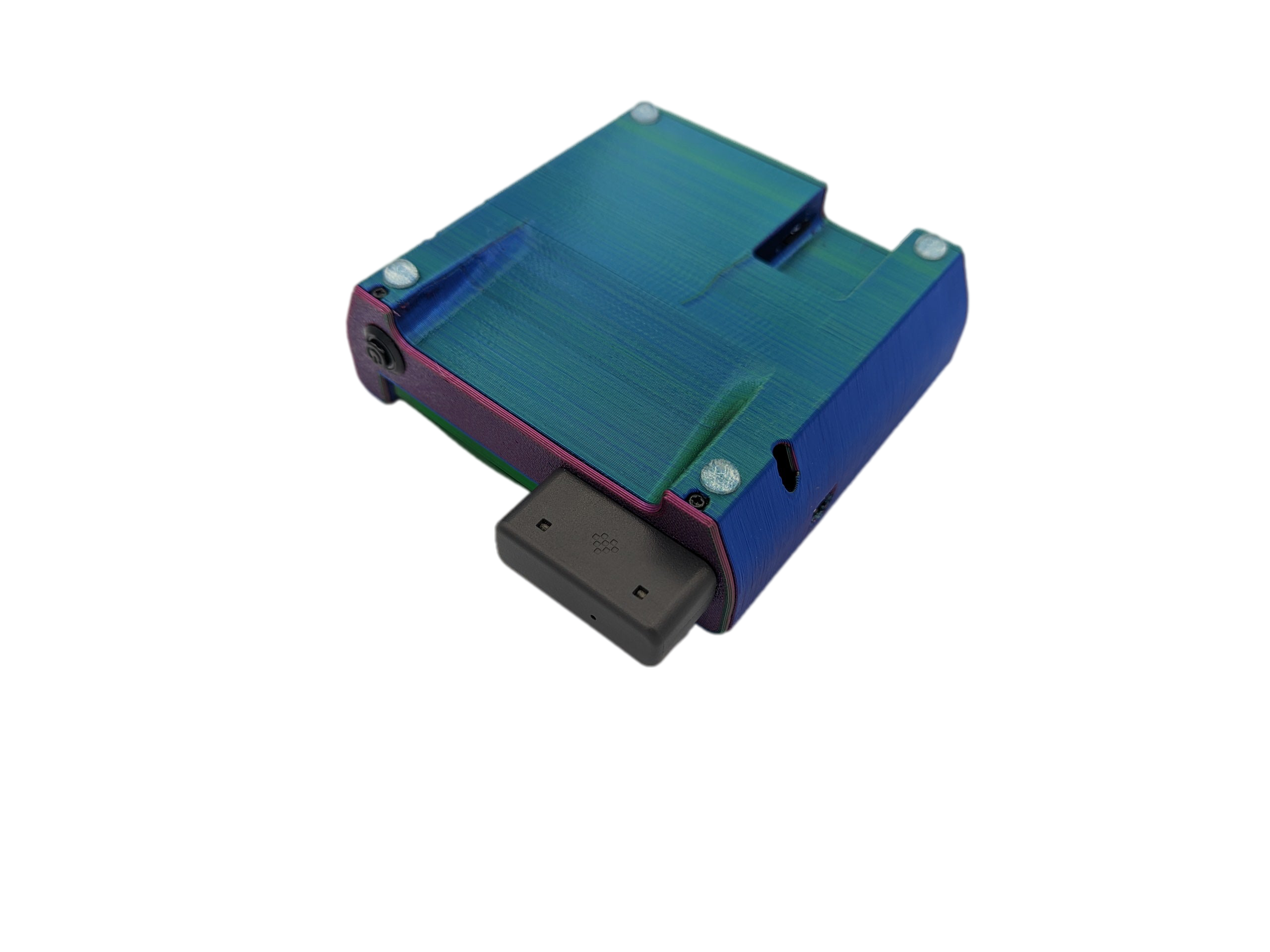

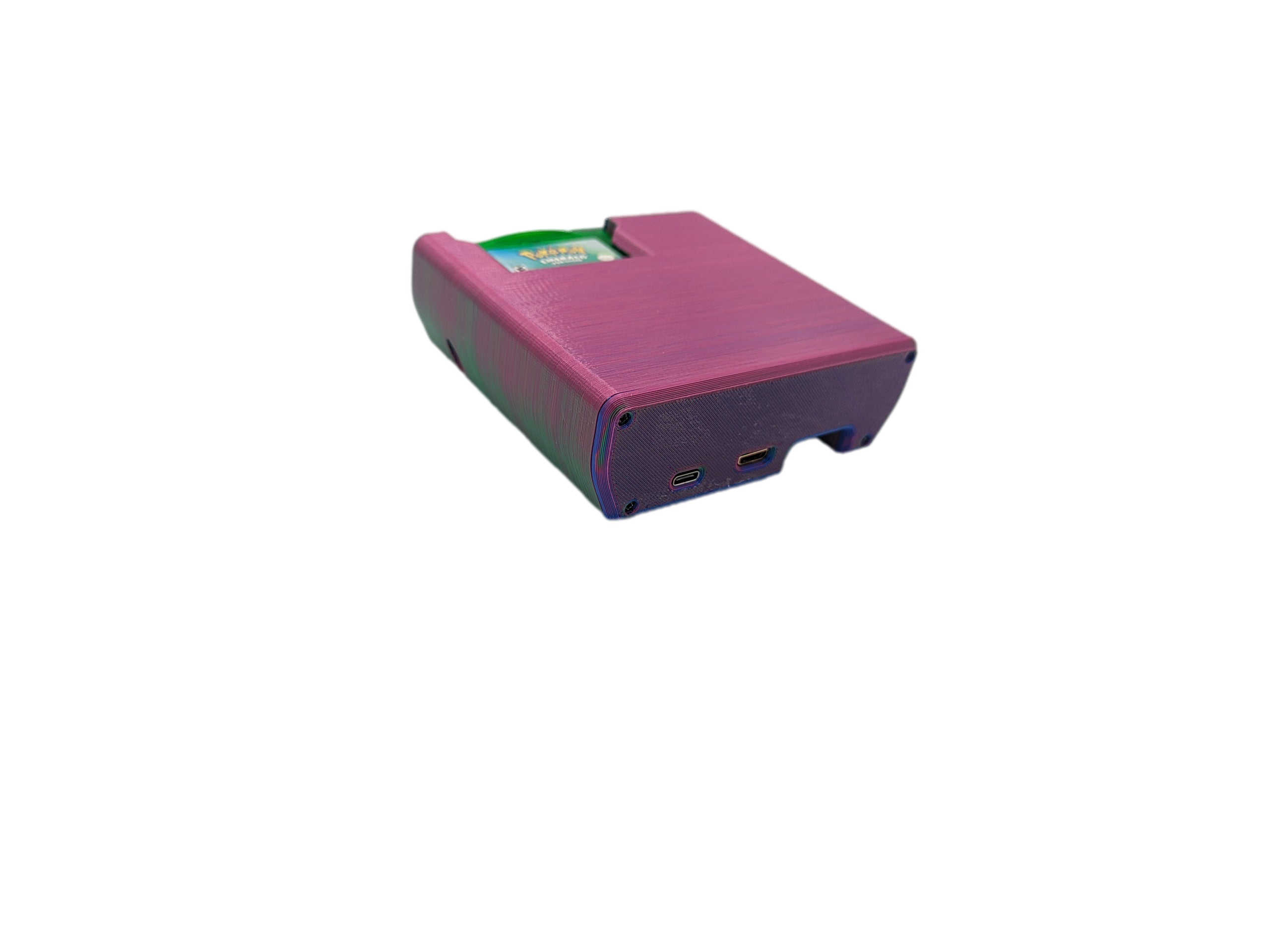

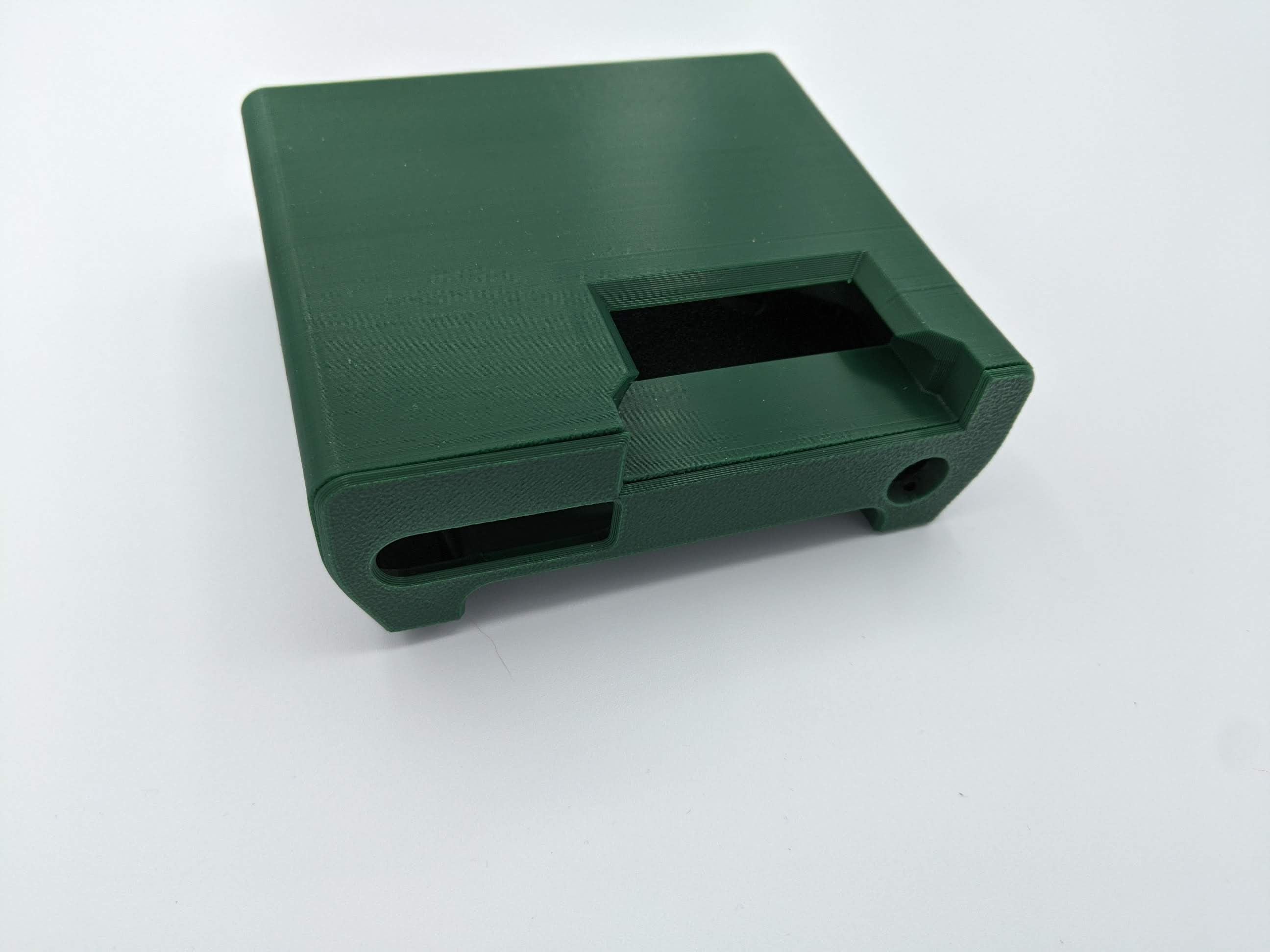

This is a custom shell for the gbaHD AIO Shield by Zekfoo
find more information here https://github.com/Zekfoo/gbaHD-AIO-Shield
This is for use with the gbaHD Project which requires a dev board for the FPGA functions learn more here.  https://github.com/zwenergy/gbaHD

None of these parts are included with this shell kit, you must source them independently for Zekfoo's board I recommend using his PCBWAY link so that he gets some monetary support for his work.

This is an advanced project that requires the removal of the CPU, RAM, and Cartridge connectors from a real GBA console Then transplanting these parts onto the new shield board.

Additionally you will need to source a power button to fit the opening on the front of the console, in my case I am using a small round latching push button switch with a diameter of 12mm similar to this one

The kit is supplied with the following:
1x Front Cover
1x Back Cover
1x Main Body
6x M2x6mm screws
2x #4x0.25" screws
4x Rubber dome stick on feet

Kit assembly is simple, once the gbaAIO board is assembled and attached to the dev board you can slide the whole assembly into the shell, the expansion port will be blocked by the shell and just requires a slight pinch to that side of the shell to allow enough space to slide everything into place.

Since this is a lower volume production product we will not have pictures of all color options, and default colors will be limited. Customized orders are welcomed, and we can make it in any color we have stock of filament in, you can inquire with our contact us page about options, or we will reach out when your order is placed and list out what filaments we currently have available.

No electronics or games are included with this product.
