NES Front Loader Hi-DefNES No-Cut Kit

This kit does not include a Hi-Def NES kit you must supply that kit yourself.
You will also need to supply a Mini HDMI cable

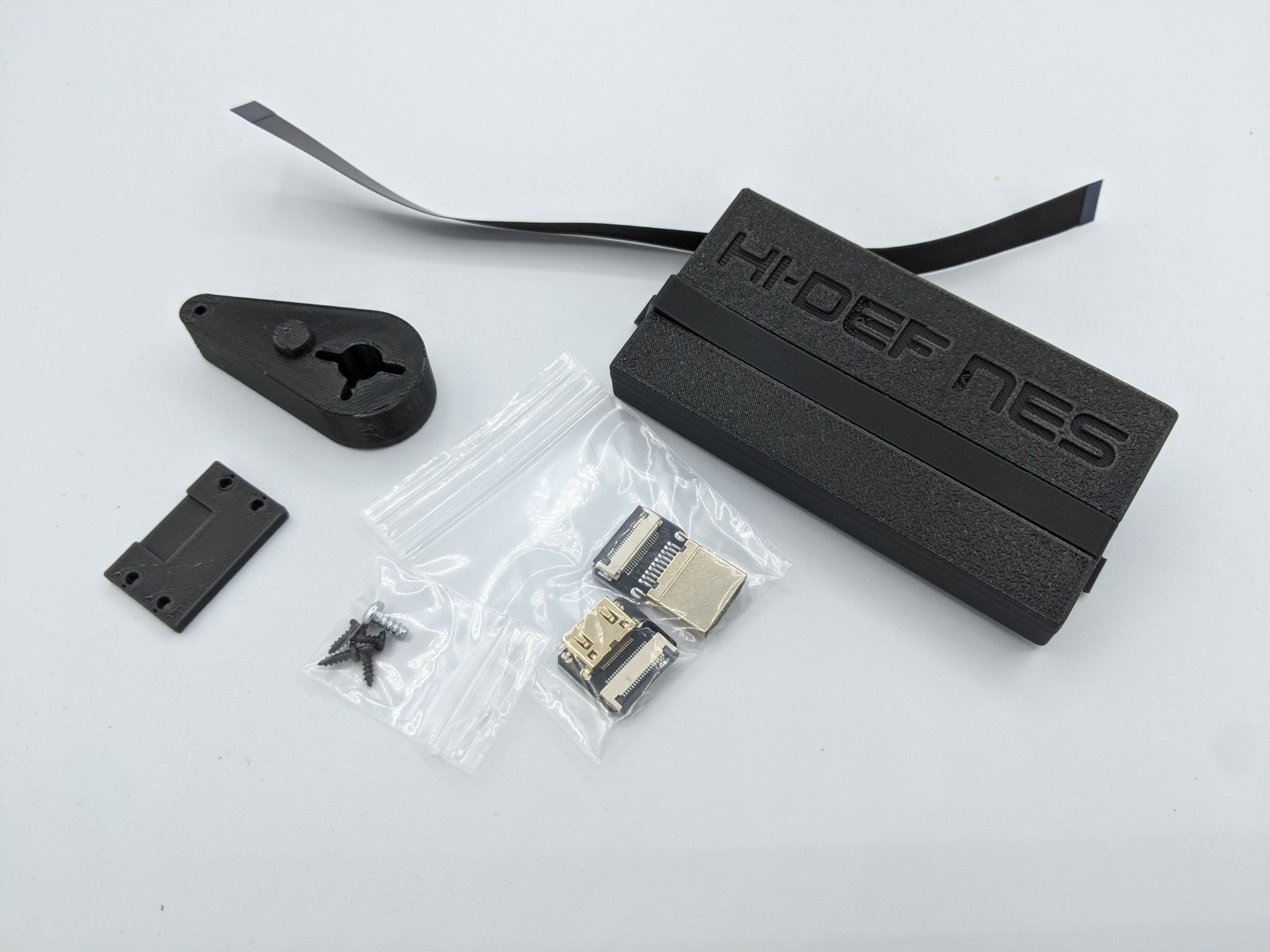

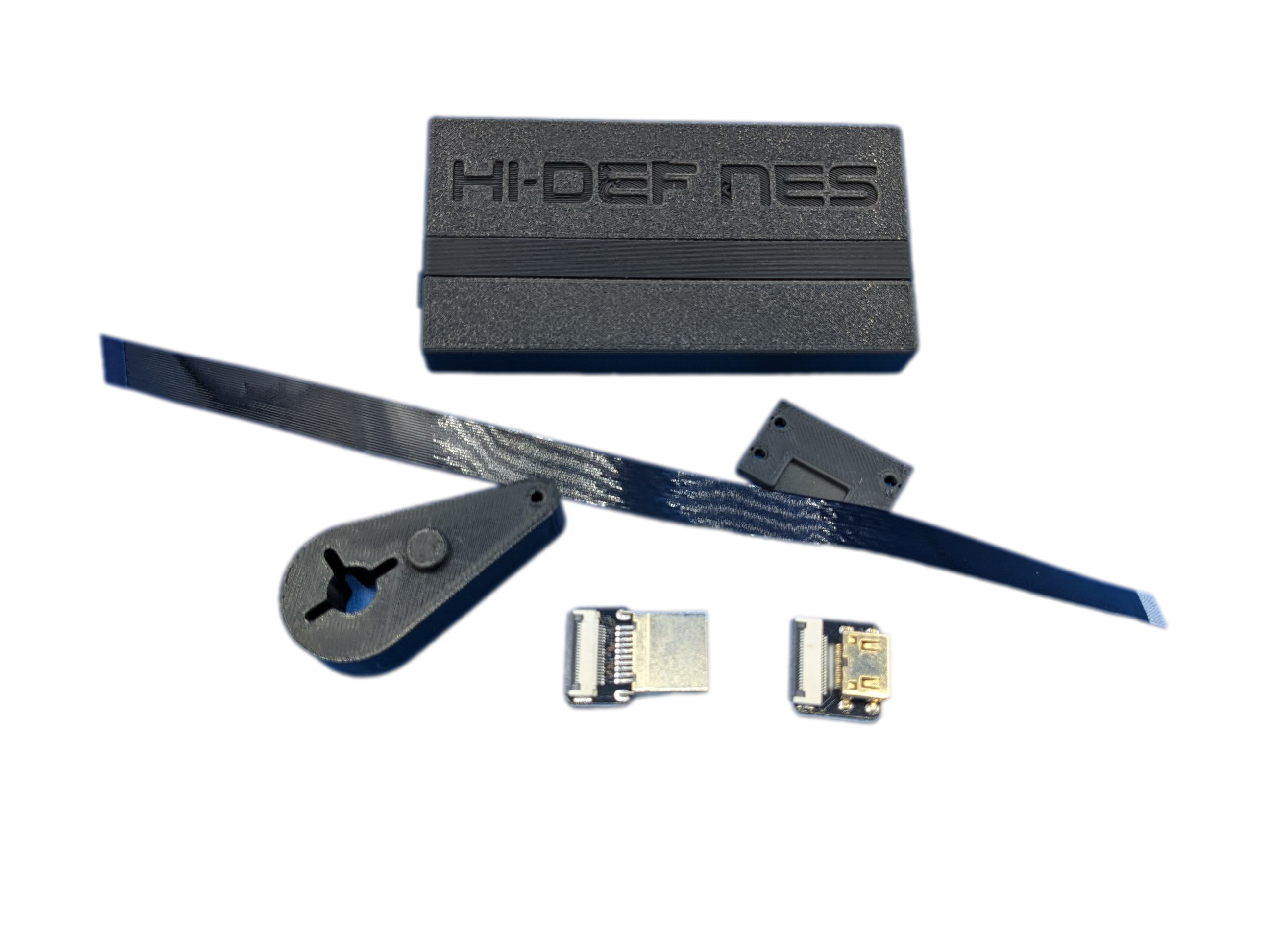

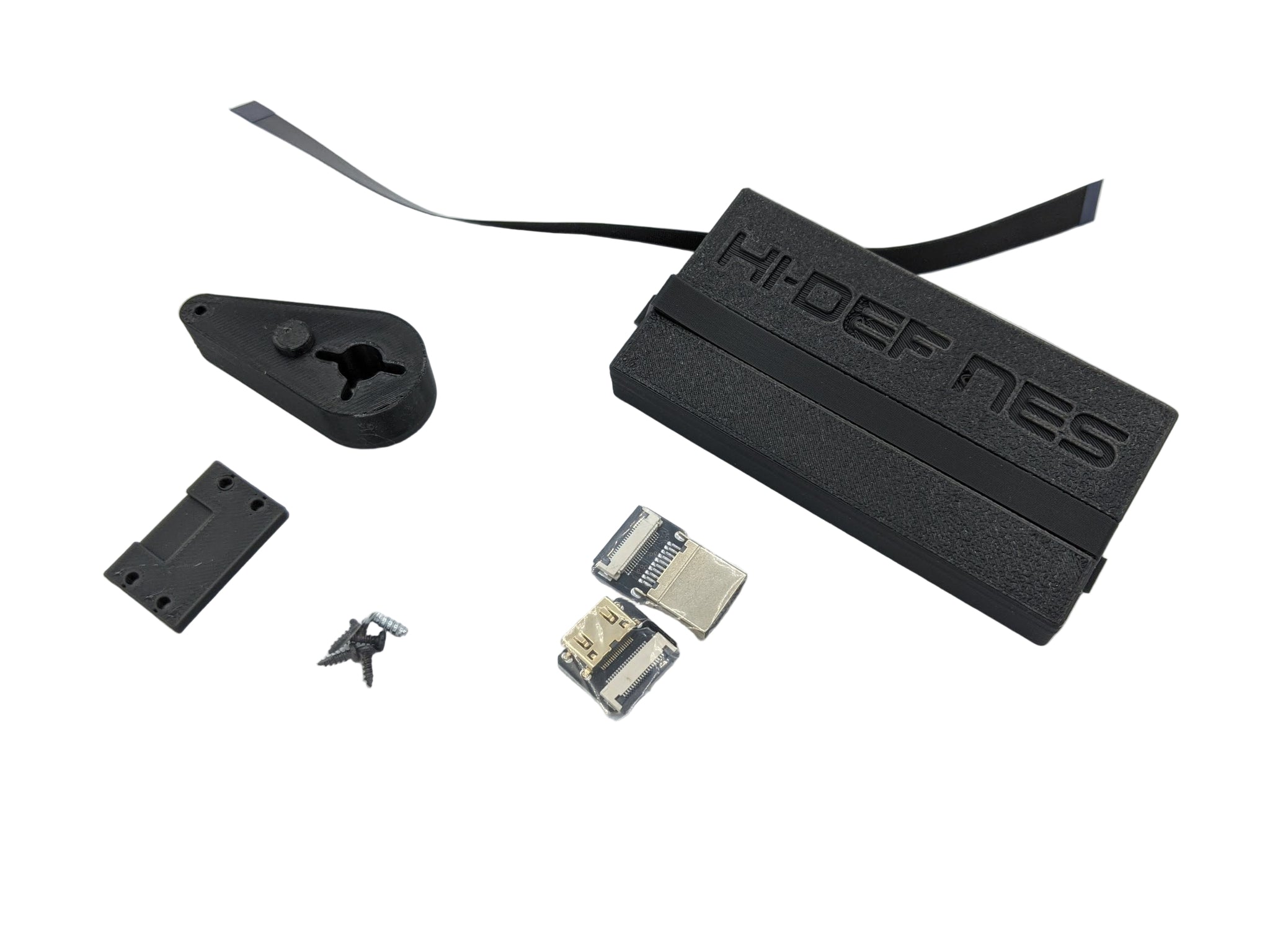

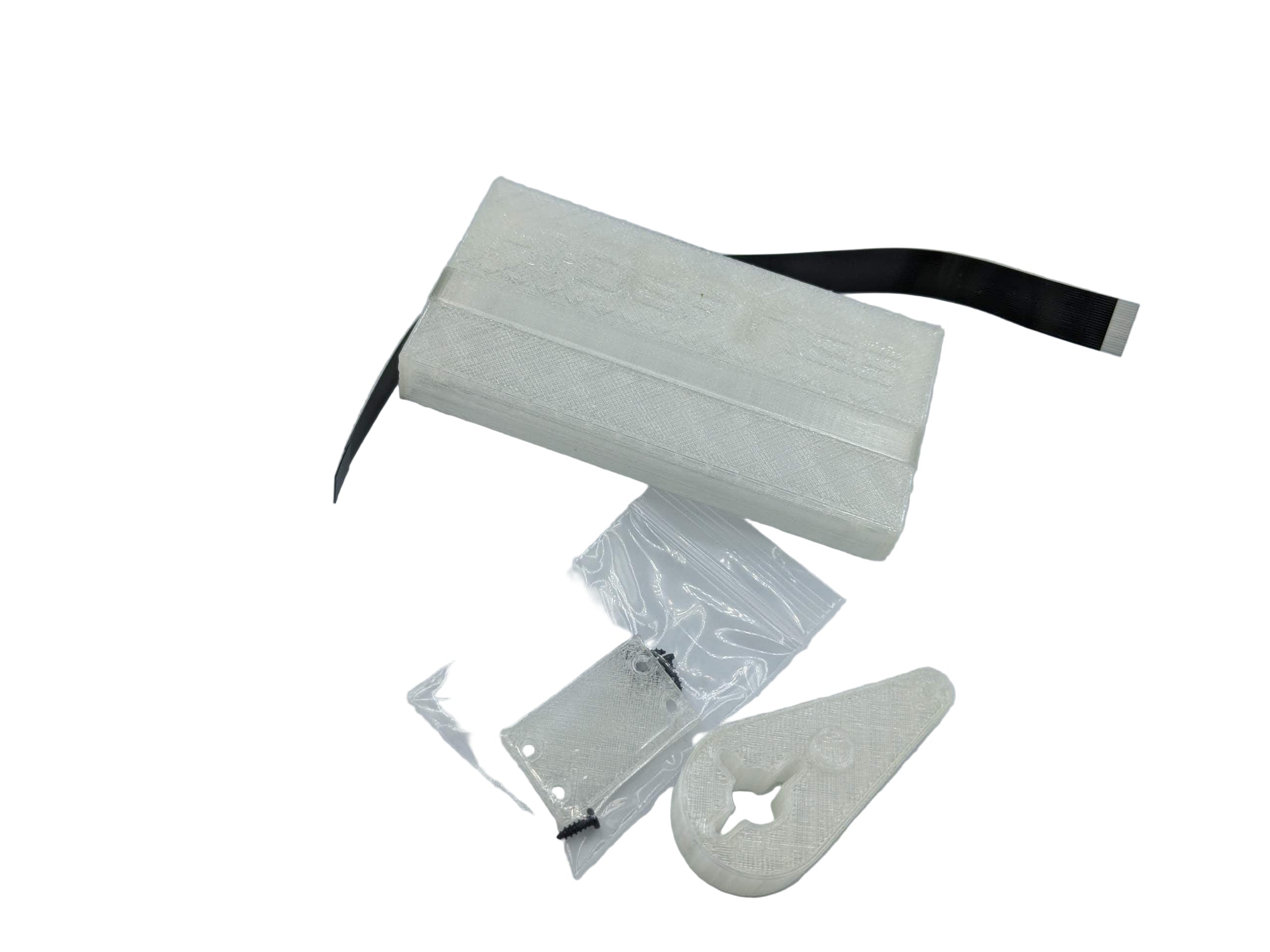

Included in the kit:
  • HDMI FFC extension
  • Printed Parts
  • 5 Screws
Install video will come shortly,

Install the Mini HDMI female port into the bottom cover, connect the FFC to that board, then install the clamp over the MiniHDMI board.
Feed the FFC through a slot in the expansion port cover (no need to remove that cover) once the FFC is inside the NES shell you may snap the cover on.
Connect the male HDMI board to the ffc, and install the Hi-DEF NES mounting part, then install the board, plug in the HDMI extension and connect the HI-DEF NES interposer wires and power wires. watch the FFCs to not get them crimped when installing the NES board.
