Sega Nomad Replacement LCD Mount
Tax excluded. Shipping calculated at checkout
Sega Nomad Replacement LCD Mount
Please note, this mount does not include a screen, or controller board, nor does it include any Sega Nomad parts, the pictures are shown to show off the part in use.
Now Supporting the Hispeedido 3.5 Inch 640x480 IPS RGB Kit.
Like this: https://www.aliexpress.us/item/3256808111747038.html

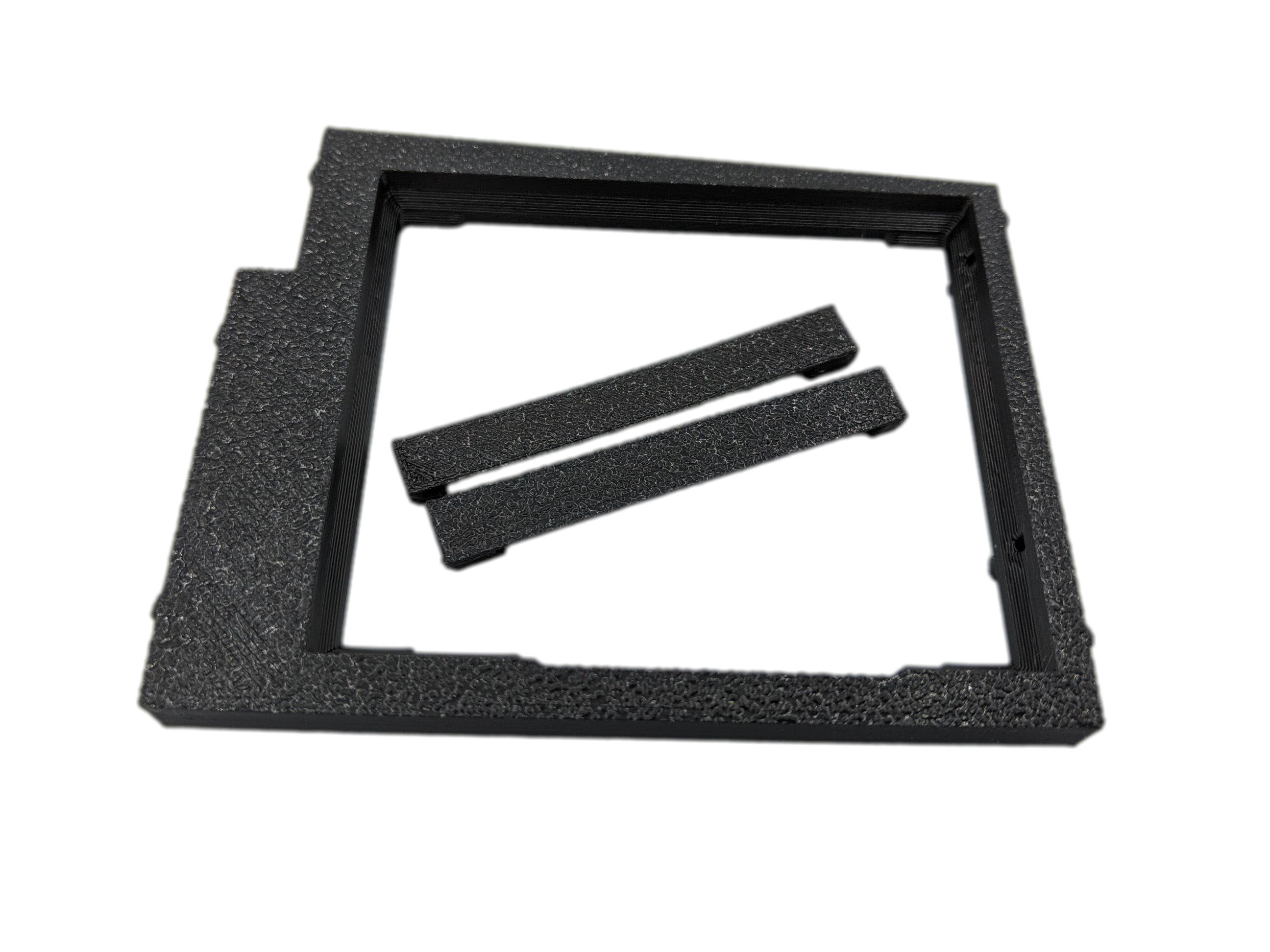

Install is a little different, the LCD is installed between the two halves and the halves are then screwed together, the driver board then snaps into the back of the mount where you can install as normal, the screen can then be mounted to the Nomad using the screws from the original LCD, you can also install the metal flashing from the original LCD over the top of the mount.

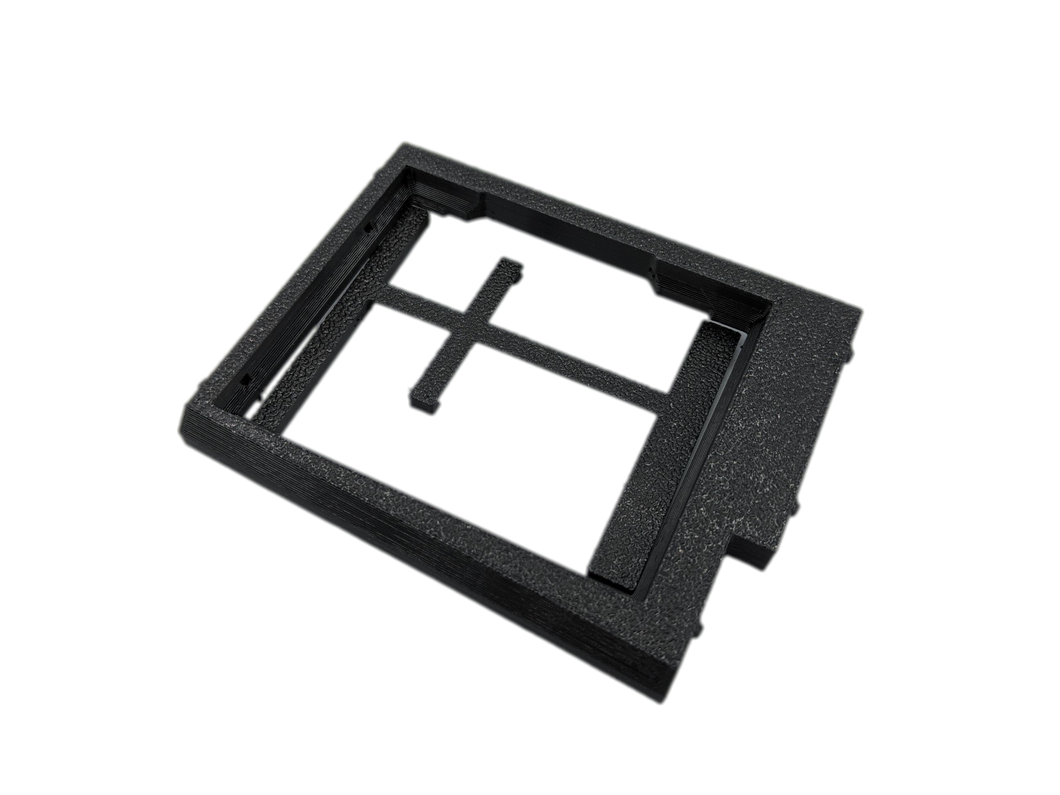

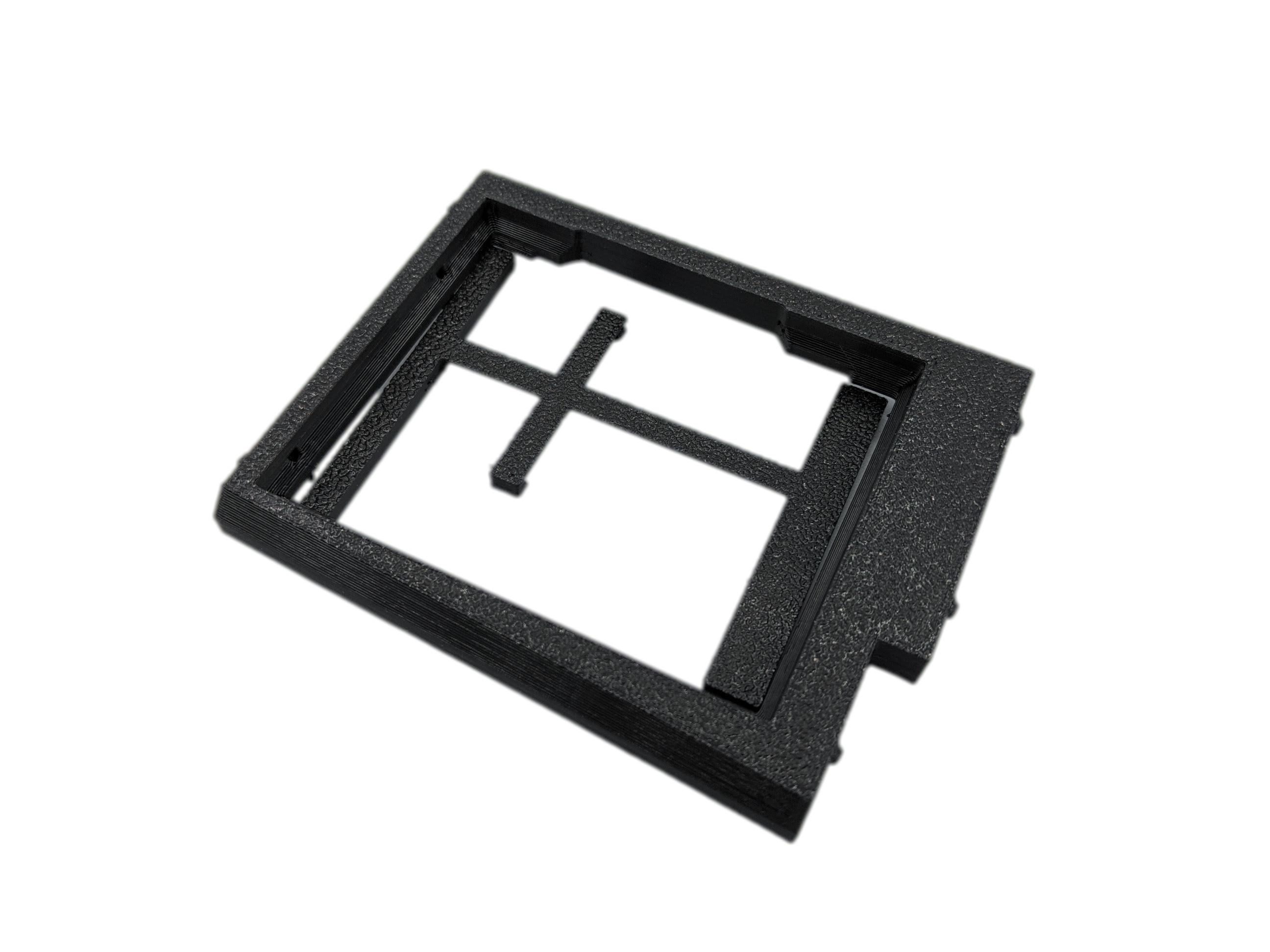

This part replaces the original LCD housing to allow an aftermarket modern LCD. Many Sega Nomad consoles have damaged or nonfunctional screens. The Sega Nomad is a strange console because it has regular AV out making it really easy to use that interface for a replacement screen.

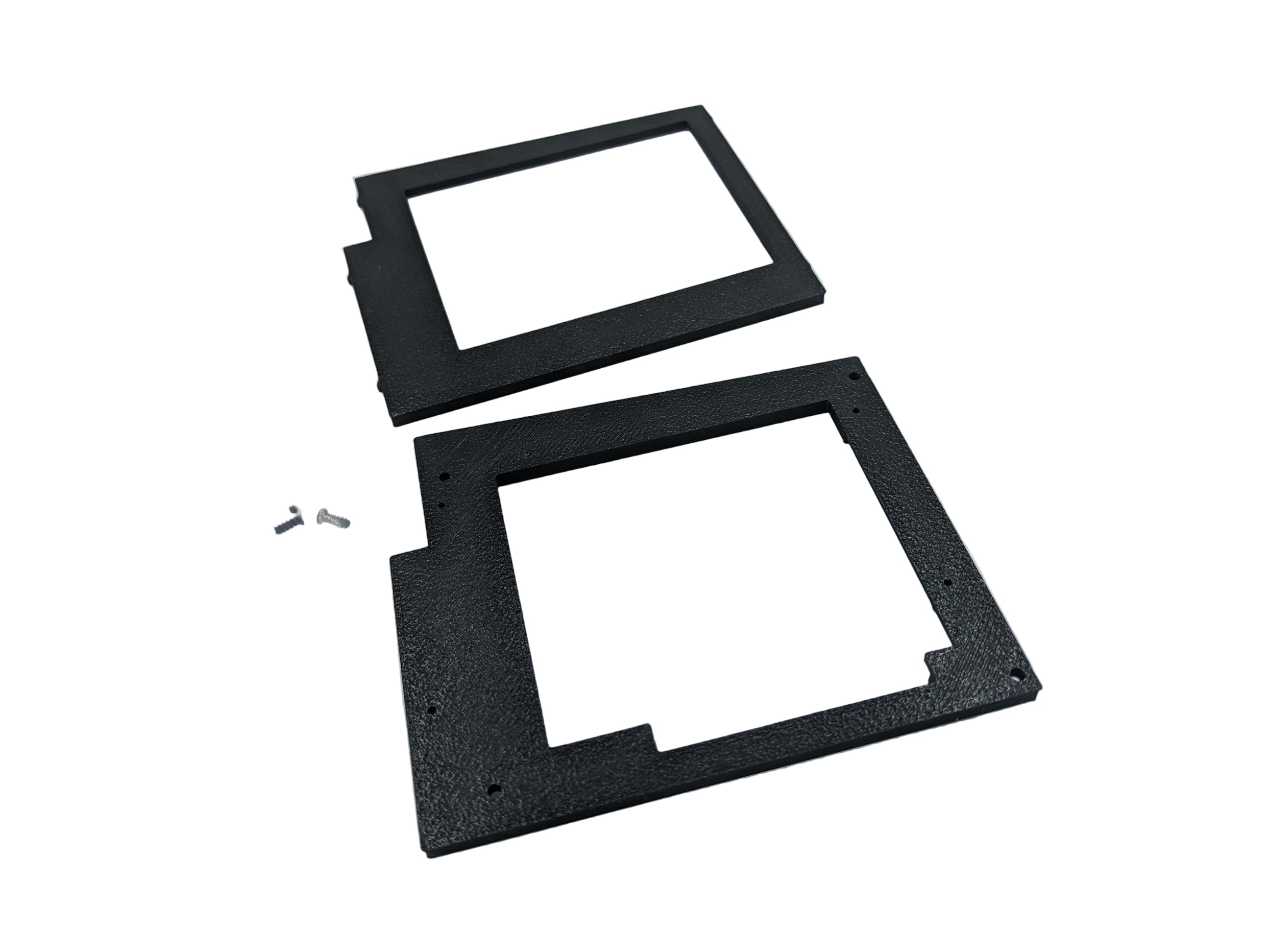

This mount comes in two versions, LCDDRV Mount and Mini Composite Mount. The housing doesn't change between the two versions, just the type of screen controller mount.
The mount is designed to utilize the metal cover from the original screen, its not required, but it does make the system look closer to stock if it is installed.
You will need to supply your own screen and controller, the LCDDRV is one of the best options, but very hard to come by, the composite screens are much easier to get and do look much better than the original screen. You can find the mini composite screen at console5.com a wonderful source for all things you need to work on your retro consoles.
Sega Nomad Replacement LCD Mount
Sale price$10.00
